Arduino Motor Driver Shield for Geared DC Motor / Stepper / Servo + User Manual

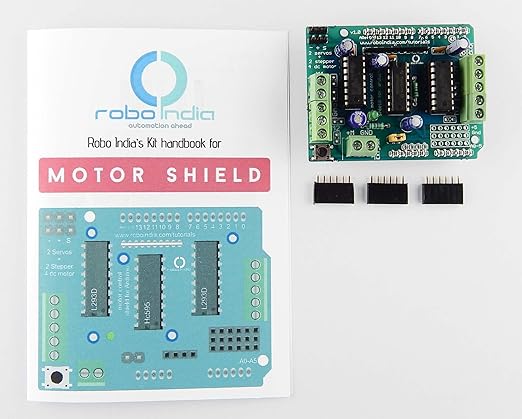

Introduction: Motor shield for Arduino for driving DC Motor, Servo Motor, Stepper Motor 2 Connections for Servo Motor. 4 H-Bridges: L293D chipset provides 0.6A per bridge (1.2A peak) with thermal shutdown protection, internal kickback protection diodes. Can run motors on 4.5VDC to 25VDC. Up to 4 bi-directional DC motors with individual 8-bit speed selection (so, about 0.5% resolution) Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping Pull down resistors keep motors disabled during power-up 2-pin terminal block and jumper to connect external power, for separate logic/motor supplies Tested compatible with Arduino UNO, Mega 1280 & 2560, Diecimila and Duemilanove. Made In India. Item included: Robo India’s Arduino Motor Shield -1 No. User manual – 1 No. 6×1 Header pins for sensor -3 Nos. ( Already soldered.
